How to use Camera Advisor

Visualize and Select the right device with Camera Advisor.


To access System Surveyor Camera Advisor™:

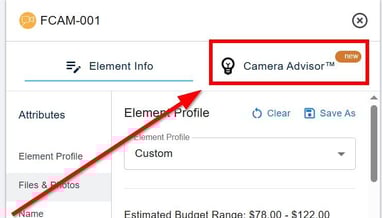

  • Click on camera element and open up the Element Details
  • Click the Camera Advisor tab

    CamAdv1

Here, you can select/change the camera orientation (Standard or Corridor), AOC angle, Target Distance and the Resolution.

Note: Changing the Angle or Target Distance will change the icon on the canvas as well

The bottom section will show you the PPF for the set range and resolution, as well as a preview image for what you can expect to see from the camera.

CamAdv3

You can adjust the slider to change between the different detection levels (DORI). This will also change the camera resolution selected. You can also select the resolution first and see the Pixels on Target for that resoluiton.

Pro Tip: After selecting the camera resolution you can use the Element Profile dropdown at the top of the tab to get a selection of your uploaded profiles that is filtered by resolution.

Read more on what is Camera Advisor.
